Schiller AT-102 ECG Machine

Schiller AT-102 ECG Machines – Interpretation 9.070000SCM, 9.070000CS

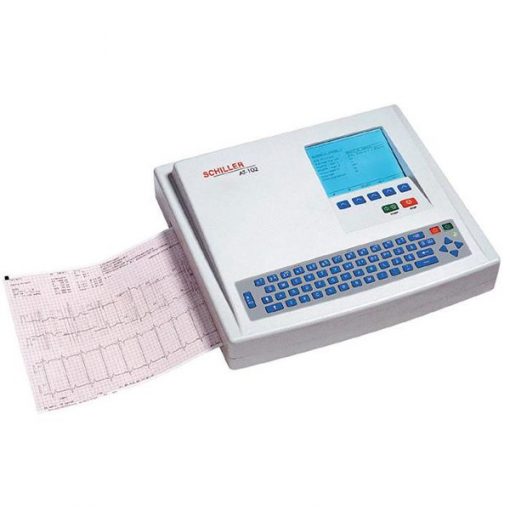

Schiller AT-102 ECG Machine with Interpretation, Memory (40 Resting ECG) & SCM  (9.070000SCM)

Schiller’s AT-102 ECG system is a 12 Channel / 12 Lead ECG to record and automatically analyze resting ECGs. Upgradeable to PFT and Stress for exercise ECGs and pulmonary function tests (spirometry). Includes Interpretation, Memory (for Resting ECG), and built-in full-size Thermal Printer with full-page 8.5 in. x 11-inch printout with built-in ECG waveform display and VGA Output port. Three (3) Year Limited Warranty. Ethernet-wired LAN and RS-232 Com Port Included.

Scope of delivery for CARDIOVIT AT-102 Standard:

CARDIOVIT AT-102 Resting ECG with 12 simultaneous leads, pacemaker detection, automatic ECG measurement

The AT-102 ECG machine includes an ECG accessory kit:

• 10 Lead Patient Cable
• 10 Snap Clip Electrode Adapters
• 500 Disposable Electrodes
• One (1) pack of paper
• Power Cable
• Operating Manual
• Interpretation Guide

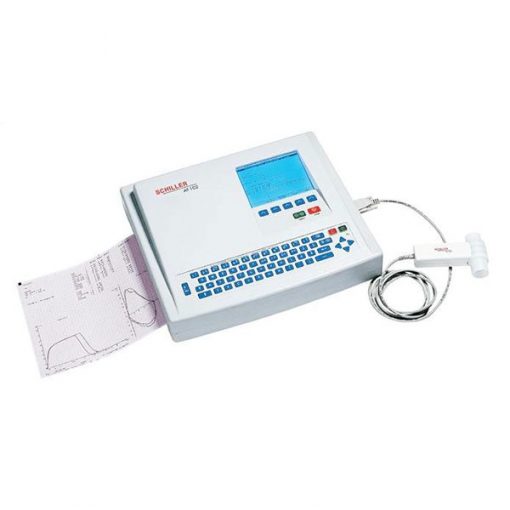

Schiller AT-102 ECG w/ Interp. PFT, MemoryCombo ECG & Spirometer (9.070000CS)

Schiller’s AT-102 ECG system is a 6-12 Channel / 12 Lead combination ECG & Spirometer with Interpretation, Memory, and Built-in Thermal Printer with a Full-page 8.5 in. x 11-inch printout with built-in ECG waveform display and VGA Output port. Upgradeable to Stress.

• 10 lead wire/12 lead simultaneous acquisitions with programmable lead configuration
• Fully automatic
• Microprocessor controlled
• 6-Channel Resting ECG
• 115VAC and battery operated
• Built-in LCD
• Built-in RS-232 interface for data transfer to SEMA 200 (with Serial cable)
• Printout on standard paper external printer (if the printer is connected)
• Printout on the internal thermal printer for real-time manual mode
• Bi-Directional Communications Options, including LAN, Wireless (Wi-Fi), and/or Modem
• 3-Year Limited Warranty

This ECG unit includes:

• SCHILLER Resting ECG software with 12 simultaneous leads
• SCHILLER ECG measurement software M, incl. average complexes and measurement markers and detailed measurement results table
• SCHILLER ECG interpretation software C, incl. adult/pediatric algorithm
• Memory option for approximately 40 ECG/Spirometry recordings*
• 12 simultaneous standard leads
• Pace maker detection
• High-resolution thermal printer
• 3-Channel ECG high-resolution LCD 120 x 90 mm display area
• Alphanumeric keyboard with rubber keys
• Battery lasts for up to 300 recordings
• Printout on 8½” x 11” chart paper
• 6/12-Channel printout formats

Spirometer:

By connecting a spiro sensor, the CARDIOVIT AT-102 transforms into a pulmonary function test device that records and analyses the flow volume and the volume-time curves as well as the corresponding parameters.
Two flow sensors are available for the portable all-rounder. You can choose between the proven SP-250 disposable flow sensor (for optimal hygiene) and the reusable SP-260 sensor.

The following programs are available:

• Slow spirometry (VCin, VCex, VCmax, IRV, ERV, IC, TV, IRV …)
• Forced spirometry (FVCin, FVC, FEV1, PEF, FEV1/FVC, MEF50, MEF75, PIF,…)
• MVV (SVC, RR, TV)
• Flow-volume and volume-time curves
• Interpretation programs in accordance with ATS or ERS

This ECG Spirometer combo unit includes the accessory kit:

• 1 pneumotach sensor; choice of SP-250 disposable (P/N 2.100022) or SP-260 reusable sensor (P/N 2.100551)
• and either 1 pack of 10 disposable plastic mouthpieces for SP-250 (P/N 2.100077) or 1 pack of disposable filters for SP-260 (P/N 2.100123)
• 10 Lead Patient Cable
• 10 Snap Clip Electrode Adapters
• 500 Disposable Electrodes
• One (1) pack of paper
• Power Cable
• Operating Manual
• Interpretation Guide

Additional information:

Requirements for Data Output to EMR systems (using SEMA):

• Memory Option (5.080003)
• SEMA Light (9.610100), SEMA Light w/ PDF Output (9.610100P) or SEMA Standard w/ PDF Output (5.610000)
• via Serial Port (Requires Serial Cable, Part No. 2.310094)
• via WLAN, Wireless LAN and/or Modem (Requires SCM Module, Part No. 5.070007, 5.070010 or 5.070009)

ADDITIONAL OPTIONS

2.100022 Spirometry Add-On – SP-250 RS-232 Sensor Set

2.100022 Spirometry Add-On – SP-250 RS-232 Sensor Set

2.100022K SP-250 Kit: Flow Sensor & Calibration Syringe. For use with AT-2 plus, AT-10 plus, AT-102 & AT-104 PC. Must provide a serial number of the unit when placing order.

5.075006 Worklist – Configurable worklists organize ECGs according to the site’s workflow processes. Worklists give quick access to the ECG for work-based reporting like demographics verification. Note: SEMA Light Required – Not Included.

2.000147 Laser Barcode Scanner Set incl. short instructions

5.070004 Thrombolysis Recommendation Software
