SPECIALIST PRO ELECTROSURGICAL GENERATOR A1250S
Price range: $3,387.35 through $6,367.40
Bovie Orders May Be Subject to a Minimum Order Fee of $50.00 for orders less than 8 pieces purchased from the below-selected items.
“Specialty Items will incur a $25.00 surcharge, due to Bovie’s criteria.”
Shipping charges are billed separately.
Available Options:
Description

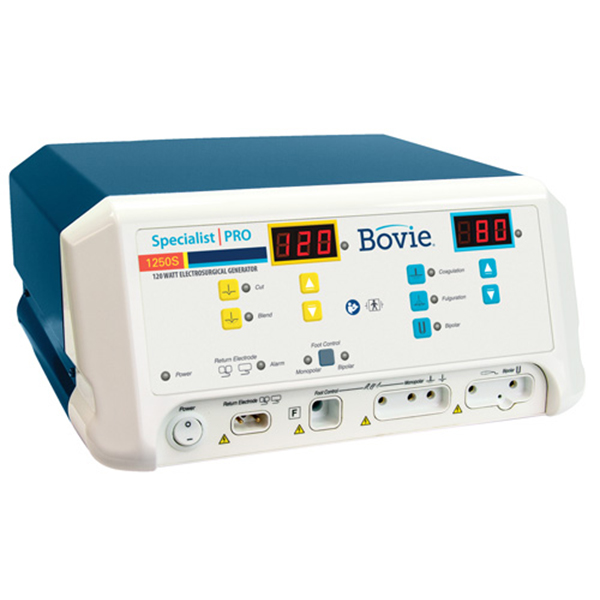

SPECIALIST PRO ELECTROSURGICAL GENERATOR A1250S
ELECTROSURGICAL GENERATOR A1250S
The Bovie Specialist | PRO is the affordable solution for the busy physician office or specialty facility. The multi-purpose unit features a modern push button design and is capable of most monopolar and bipolar surgical procedures. The Specialist | PRO offers 5 energy outputs with up to 120 watts of power; modalities include Cut, Blend, Coagulation, Fulguration and Standard Bipolar. The unit is designed with dependable safety features like BovieNEM™ (Neutral Electrode Monitoring) pad sensing technology, BovieDED™ (Digital Error Detection), audible alert tones and self-test circuits. The Bovie Specialist | PRO satisfies the physician’s electrosurgical needs with safety, reliability and convenience.
POWER
120 watts of Cutting power.
VERSATILITY
Capable of Monopolar and Bipolar procedures.
CONVENIENCE
The Bovie Specialist | PRO uses a full line of disposable accessories for easy setup and transition between procedures.
The Bovie Specialist | PRO is designed to operate like an OR generator in a smaller, lower-powered package.
SECURITY
The Bovie Specialist | PRO is designed with state-of-the-art safety features including Bovie NEM (Neutral Electrode Monitoring) pad sensing technology which monitors the return electrode for optimum patient protection. BovieDED (Digital Error Detection) monitors all functions of the generator to ensure constant safety for the patient, doctor and staff.
RELIABILITY
The Bovie Specialist | PRO is backed by Bovie’s four (4) year manufacturer’s limited warranty.
ADDITIONAL FEATURES
- Large illuminated digital displays
- Ample raised push button power-controls provide rapid power adjustments.
- Self-test circuits
- Audible tones
- Discreet outputs FCFS™ (First Come First Served)
- Isolated circuitry
- Digital Error Detection
Cut (120 Watts)
Blend (90 Watts)
Coagulation (80 Watts)
Fulguration (40 Watts)
Bipolar (30 Watts)
Monopolar Footswitching Receptacle
Accepts cable or adapter equipped with Bovie plug. Connect footswitching accessories.
Monopolar Handswitching Receptacle
Accepts standard three-pin handpiece. Connect handswitching accessories.
Bipolar Receptacle
Accepts standard cable for bipolar handpieces.
TECHNICAL SPECS
| MONOPOLAR | OUTPUT POWER |
OUTPUT FREQUENCY |
REPITITION RATE |
OPEN CIRCUIT VPEAK MAX |
CREST FACTOR* (RATED LOAD) |
|---|---|---|---|---|---|
| Cut | 120 W @ 500 Ω | 357 kHz ± 50 kHz | N / A | 1250V | 2.9 ± 20% |
| Blend | 90 W @ 800 Ω | 357 kHz ± 50 kHz | 30 kHz ± 5 kHz | 1850V | 3.3 ± 20% |
| BIPOLAR | OUTPUT POWER |
OUTPUT FREQUENCY |
REPITITION RATE |
OPEN CIRCUIT VPEAK MAX |
CREST FACTOR* (RATED LOAD) |
|---|---|---|---|---|---|
| Coagulation | 80 W @ 1000 Ω | 475 kHz ± 19 kHz | 57 kHz ± 5 kHz | 3300V | 5.5 ± 20% |
| Fulguration | 40 W @ 1000 Ω | 410 kHz ± 50 kHz | 25 kHz ± 5 kHz | 3900V | 7.7 ± 20% |
| Bipolar | 30 W @ 200 Ω | 520 kHz (-14 kHz, +29 kHz) |
32 kHz ± 5 kHz | 1200V | 6.9 ± 20% |
*an indication of a waveform’s ability to coagulate bleeders without a cutting effect
H – 15.2cm (6 in.)
D – 30.5cm (12 in.)
Warranty:
4 years, Additional Warranty Available
ELECTROSURGICAL SYSTEM WITH SMOKE EVACUATION
The Bovie 1250S-V, 120 watt electrosurgery generator combined with the Smoke Shark™ II smoke evacuator provides a complete and precise energy system with safe and effective smoke particle capture capabilities. Surgical smoke is a by-product of electrosurgery and can carry viruses, CO and other chemical and biological hazards.
The easy-to-use Bovie Smoke Shark II Smoke Evacuator uses a 35-hour, four-stage filter (Pre-filter, ULPA, 24oz Carbon, Post-filter), to effectively capture smoke and particles at the surgical site, down to 0.01mm with 99.99995% efficiency.
The system includes a mobile stand with instrument tray and is ideal for the veterinary office, clinic and surgery center.
Bovie 1250S-V Electrosurgery System
- A1250S-V Electrosurgical Generator (1)
- ESPR2 Sterile Reusable Pencil (1)
- 5 – Non-sterile Reusable Electrodes: ES01R blades (2), A833R needles (2), ES20R ball (1)
- A1204P Reusable Stainless Steel Grounding Plate (1)
- A1254C Reusable Grounding Cord (2)
- 110 & 220 VAC Power Cords (1 ea.)*
- User’s Guide (MC-55-237-001_r0) (1)*
Smoke Shark System
- SE02 Smoke Shark with 35 Hour Filter and Pneumatic Footswitch (1 ea.)
- 786T 7⁄8” (22.225mm) Tube 6’ (182.9cm) Long (1)
TECHNICAL SPECS
A1250S-V Electrosurgical Generator
Dimensions:
Height: 15.2cm (6 in.)
Width: 26cm (10.25 in.)
Depth: 30.5cm (12 in.)
Weight: < 4 kg (< 9 lbs.)
Output Power:
Cut: 120 watts
Blend: 90 watts
Coagulation: 80 watts
Fulguration: 40 watts
Bipolar: 30 watts
Output Frequency:
350 – 600 kHz
Line Voltage:
A1250S-V: 100-240 VAC
Line Frequency:
50 – 60 Hz
WARRANTY:
4 Years
Smoke Shark II Smoke Evacuator (SE02)
Dimensions:
Height: 15.2cm (6 in.)
Width: 27.9cm (11 in.)
Depth: 39.4cm (15.5 in.)
Weight: 4.3kg (10 lbs.)
Line Voltage:
SE02: 120 VAC
Line Frequency:
50 – 60 Hz
WARRANTY:
2 Years
SPECIALIST PRO ELECTROSURGICAL GENERATOR A1250S
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | A1250S, A1250S-G, A1250S-G-220 |
