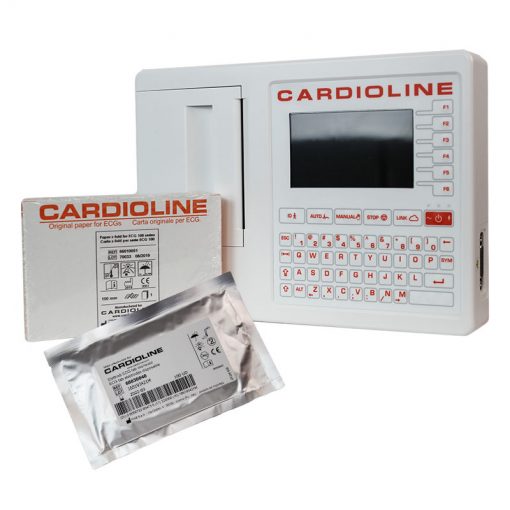

Portable 12 lead Ecg
VIDEO Portable Ecg 12 Lead Ecg with Interpretation by Cardioline (100S) Features
Advanced 12-lead ECG with interpretation
Can display, acquire, printout (on 100mm z-fold paper 3+1, 3+3, 6) and store ECG exams for adults, children and infants.
Extracts the critical ECG parameters and offers interpretation when equipped with the Glasgow program available as an option.
Operates either stand-alone or connected to a computer or a network USB.
Interval measurements – HR, PR, QRS, QT and QTC intervals. In addition, it will also display the QTcF interval. See
12 Lead ECG QTcF Example What’s included in the box:
63050025 – ECG patient cable standard IEC, 10 leads, 4mm plugs 1
66020008 – Universal adapter 4mm plugs, 10 units 1
(replacement clips) 66030039 – ECG Disposable electrodes, tab model, 100 units 1
(replacement electrodes) 66010051C – ECG z-fold paper 100x150mm x 180 sheets 1
(replacement paper) 66020028 – ECG ruler 1
83080022 – Medical power supply AC/DC 1
10 A – Power supply cable 1
67040224 – ECG100+ Device protection cover 1
Exclusive 36-month Warranty
Initial Setup of the Portable 12 lead Ecg
6.1. Initial startup
The first time the device is used, the basic configurations of the electrocardiograph should be set. Therefore, when using the device for the first time, it’s recommended to go to the settings screen and set at least the following parameters:
Unit of weight and height
Date and time
6.2. Patient cable connection
Connect the patient cable terminal plug to the connector on the side of the electrocardiograph. The connector is so designed that the patient cable can only be inserted one way, with the “Cardioline” logo on the plug facing upwards. Should the plug of the patient cable not go into the connector, do not force it but try to turn it over.
For more info, refer to the
Cardioline 100S Operations Manual Portable 12 lead Ecg Available Accessories
63030105 Set of 4 colored periph. ECG electrode clamps, Ag/Agcl
63030106 Set of 4 peripheral ECG electrode clamps Ag/Agcl
63030107 Set of 4 peripheral ECG electrode clamps, pediatric application
630301636 chest ECG suction type electrodes Ag/Agcl
66020002 ECG electrode gel, 260 ml
63050025 ECG patient cable IEC, 10 leads, 4mm plugs
63050068 ECG patient cable AHA, 10 leads, 4mm plugs
67040224 ECG100+ Device protection cover
66010051C ECG Z-fold paper 100x150mm x180 sheets, 10 units
63090236S nap adapter, 4 mm plugs, 10 units
66020008 Universal adapter 4mm plugs, 10pcs
66030031C Disposable electrodes ECG, snap model, 50 pcs
66030039 ECG Disposable electrodes, tab , 100 pcs
66030039C ECG Disposable electrodes, tab , 100 pcs , 8 packs
66030039S ECG Disposable electrodes, tab , 100 pcs , 40 packs
66030036C ECG Disposable electrodes, neonatal, 25 units
66030037C ECG Disposable electrodes, banana model, 60 units
63090689 ECG100+ trolley including patient cable supporting arm
65090057 “Cardioline” Carrying case
83080022 Medical power supply AC/DC
80509595 ECG100S AHA
80509295ECG100S AHA reus.
PLEASE CALL OR EMAIL WITH YOUR DESIRED PRODUCT INFORMATION!
