Huntleigh Dopplex Bi-directional Dopplers – MD2 SD2
Price range: $822.50 through $1,433.48
Available Options:
| Model | Probe Type | Description | SKU | Price | Qty. | ||
|---|---|---|---|---|---|---|---|
| "SD2" HUNTLEIGH-SD2 | LUS-ISP3-SD2KIT |  | LUS-ISP3-SD2KIT Intraoperative Starter Pack with SD2 (3 intraoperative probes, probe adaptor, IV pole clamp, SD2) | LUS-ISP3-SD2KITS | $1,433.48 | ||
| "SD2" HUNTLEIGH-SD2 | 10 MHz Vascular | | SD2 Dopplex Doppler with 10MHz Probe (includes 10MHz probe) | LUS-SD2-VP10XS | $885.00 | ||
| "SD2" HUNTLEIGH-SD2 | Doppler Only - No Probe | | SD2 Dopplex Doppler | SD2-P-USA | $822.50 | ||
| "SD2" HUNTLEIGH-SD2 | EZ8 - 8MHz High Sensitivity Widebeam | | EZ8 – 8MHz High Sensitivity Widebeam probe for easier vessel location & to maintain vessel contact during inflation and deflation. | LUS-SD2-P-EZ8KIT | $1,077.50 | ||
| "SD2" HUNTLEIGH-SD2 | 8 MHz Vascular | | 8 MHz Vascular – Useful for monitoring in tight areas, and in obtaining signals from peripheral and superficial vessels | LUS-SD2-P-VP8KIT | $1,099.31 | ||
| "SD2" HUNTLEIGH-SD2 | 5 MHz Vascular | | 5 MHz Vascular – Aids in reading signals from moderately deep vessels | LUS-SD2-P-VP5KIT | $909.99 | ||
| "SD2" HUNTLEIGH-SD2 | 4 MHz Vascular | | 4 MHz Vascular – Aids in reading very deep vascular vessels | LUS-SD2-P-VP4KIT | $909.99 | ||
| "SD2" HUNTLEIGH-SD2 | 3 MHz Obstetric | | 3 MHz Obstetric – Especially useful in confirming pregnancy (8-10 weeks), monitoring early in pregnancy, and monitoring smaller women | LUS-SD2-P-OP3KIT | $909.99 | ||
| "SD2" HUNTLEIGH-SD2 | 2 MHz Obstetric | | 2 MHz Obstetric – Especially useful later in pregnancy (10-12 weeks and up), for use in labor, and in monitoring larger women | LUS-SD2-P-OP2KIT | $909.99 |
Description

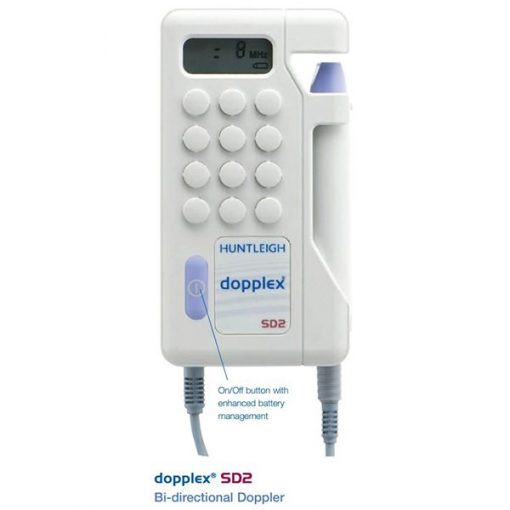

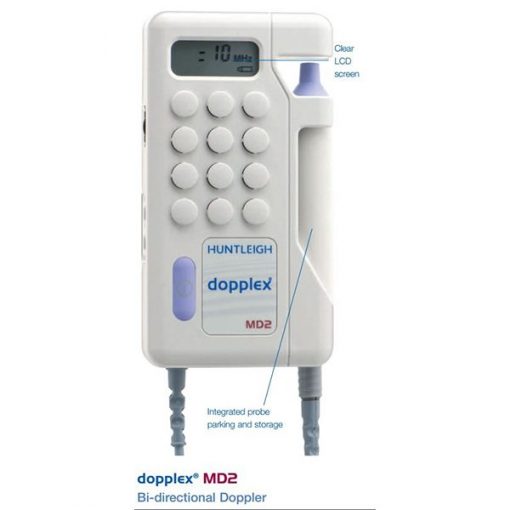

Huntleigh Dopplex Bi-directional Dopplers – HUNTLEIGH- SD2, MD2
Huntleigh Dopplex Bi-directional Dopplers
Photoplethysmograph (PPG) System
Huntleigh Healthcare’s Rheo Dopplex® II Doppler (RD2) UNAVAILABLE provides four application areas in one unit:
- DVT Screening (Deep Vein Thrombosis)
- CVI Screening (Chronic venous insufficiency)
- ABPI measurements (Ankle brachial pressure index)
- Fetal heart detection (with optional OP2 probe)
Dopplex handheld unit combines Digital Photoplethysmography (PPG) with Bi-directional Doppler to make a complete arterial and venous assessment system. It can provide printouts of venous refill curves and blood flow waveforms using Dopplex DR3 software or the Dopplex Printa II package. (sold separately)
DVT Screening with the Dopplex:
The Dopplex RD2 unit has been clinically proven to be effective in screening patients for the absence of a Deep Vein Thrombosis (DVT) in the lower limb. Clinical studies have shown that Dopplex RD2 is a reliable screening tool in patients with suspected lower limb DVT and is suitable for bedside and community based practice. (Tan et al, 1999; Hennings et al, 2000) Recent studies have shown that when the Dopplex RD2 is used in conjunction with D-Dimer, 100% NPV for DVT is obtained. This has also resulted in significant cost savings for the hospital by reducing the number of Duplex scans. (Tovey et al, 2000; Williams et al, 2002) The RD2 unit is ideal for A&E departments, Medical Assessment Units, GP and Leg Ulcer Clinics.
CVI Screening with the Dopplex:
The Dopplex RD2 unit can also be used for assessing Chronic Venous Insufficiency (CVI). Applications include:
• Rapid assessment of overall venous function. (McEnroe et al, 1988)
• Differentiation between deep and superficial venous insufficiency (Neumann et al, 1992)
• Measurement of ABPI
• Detecting Fetal heart beat (with optional OP2)
Features:
- PPG capability (Photoplethysmography)
- Range of eight probe options with probe coding (sold individually…see descriptions below)
- Built in loudspeaker and output for headphones
- True separated stereo audio output
- Enhanced Bi-directional LCD display
- Waveform calibration function, 5 level
- Gain control
- Auto shut off and active noise reduction
- Obstetric capability (audio only)
Includes one probe of your choice as standard – please specify choice in dropdown box above (additional probes are available separately).
Compatible with a wide range of Interchangeable Vascular & Obstetric Probes: (sold separately)
- 2 MHz Obstetric – Especially useful later in pregnancy (10-12 weeks and up), for use in labor, and in monitoring larger women
- 3 MHz Obstetric – Especially useful in confirming pregnancy (8-10 weeks), monitoring early in pregnancy, and monitoring smaller women
- 4 MHz Vascular – Aids in reading very deep vascular vessels
- 5 MHz Vascular – Aids in reading signals from moderately deep vessels
- 8 MHz Vascular – Useful for monitoring in tight areas, and in obtaining signals from peripheral and superficial vessels
- 10 MHz Vascular – For monitoring special superficial vessels
- EZ8 – 8MHz High Sensitivity Widebeam probe for easier vessel location & to maintain vessel contact during inflation and deflation.
- DFK1-USA-MD2 – Diabetic Foot Kit with MD2 Dopplex Doppler (includes 8MHz probe, sphyg, arm cuff, toe cuff, MD2)
- ABI-USA-MD2 Dopplex ABI – Ankle Brachial Index Kit with MD2 Dopplex Doppler
Huntleigh Dopplex Bi-directional Dopplers
*images are for representational purposes only and may include additional accessories that are sold separately, please rely on descriptions when ordering.
