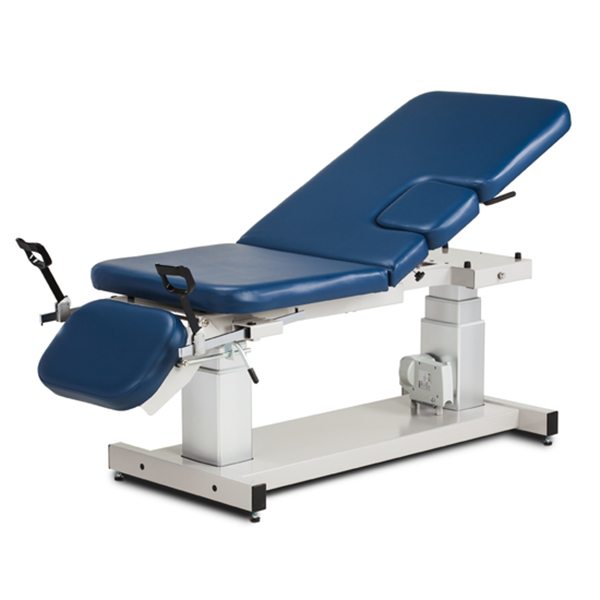

CLINTON Multi Use Imaging Table
Price range: $4,686.16 through $4,944.08
Three piece top imaging table with drop
Please allow at least 14 days lead time. Freight charges will be bill separately.
Available Options:
Description
CLINTON Multi Use Imaging Table
PLEASE CALL OR EMAIL WITH YOUR DESIRED PRODUCT INFORMATION!
MODEL #: 80079
• Three-section table with pneumatic adjustable backrest, manual footrest, stirrups and window drop
• Footrest is adjustable from either side and raises up to 30º from flat position
• Optional side rails & casters (see opt
• Trendelenburg/Reverse Trendelenburg plus or minus 15 º
• Easy-to-use hand control
• All-welded base and top frame
• Unobstructed base design
• Dual column lift system adds rigidity
• Paper dispenser included
• 2 Safety straps included
• Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1
• Industry leading 5-year, limited warranty
• 34″ wide model available
• 550 lbs load capacity under normal use
| MODEL # | LENGTH | WIDTH | HEIGHT RANGE |
|---|---|---|---|
| 80079 (overall) | 76″ | 27″ | 21.5″ – 37.5″ |
| Backrest | 38″ | 27″ | |
| Footrest | 12″ | 18.5″ | |
| Window | 10″ | 10″ | |
| 80079-X (overall) | 76″ | 34″ | 21.5″ – 37.5″ |
| Backrest | 38″ | 34″ | |
| Footrest | 12″ | 18.5 | |
| window | 10″ | 10″ | |
| 80079-X (overall) | 193 cm | 86.36 cm | 54.61 cm – 95.25 cm |
| Backrest | 96.52 cm | 86.36 cm | |
| Footrest | 30.28 cm | 47 cm | |
| Window | 25.4 cm | 25.4 cm |
011 Power Backrest
• Smooth power control raises backrest to 80º and lowers to flat
012 Headrest/Power Tables
• Padded and length adjustable
• Extends the table’s length
035 Armboard/Power Tables
• Padded, ratchet style, rotating armboard
• Rotates 180º
• Interchangeable on right or left side
080 Safety Straps
• 2″ x 89.5″ (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 safety staps per set.
• Bariatric straps available: 2″ x 120″ (5 cm x 305 cm) strap is secured with quick hook and loop fasteners
083 2-Hook IV Pole & Mounting Bracket
• Chrome pole with height adjustment
• Removable bracket mounts to either side of the head end
• 2-hook top
087 Locking Casters
• 3″ heavy duty, rubber wheel, easy-roll casters
Note: The addition of casters adds 6″ to the overall width of the table. (15.24 cm)
090 Power Footrest
• Smooth power control lowers footrest to 30º and raises to flat
098 Safety Rails
• Pair
• 3-height, position
• Plunger height adjustment
Additional information
| Dimensions | 76 × 27 × 215-37.5 in |
|---|
