CLINTON General Ultrasound Tables (80061, 80062, 80063)

Description

CLINTON General Ultrasound Tables

PLEASE CALL OR EMAIL WITH YOUR DESIRED PRODUCT INFORMATION!

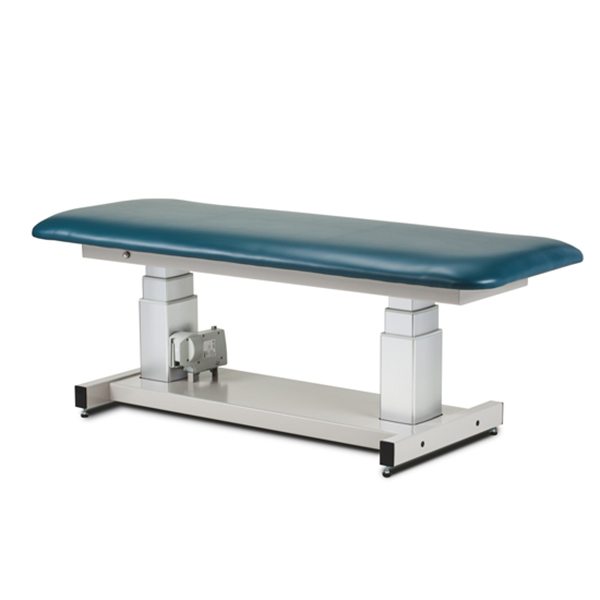

MODEL #: 80061

• One piece flat top with firm foam padding
• Trendelenburg/Reverse Trendelenburg plus or minus 15 º
• Easy-to-use hand control
• All-welded base and top frame
• Unobstructed base design
• Dual column lift system adds rigidity
• Paper dispenser included
• 2 Safety straps included
• Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1
• Industry leading 5-year, limited warranty
• Optional side rails  & casters available
• 34″  wide model available
• 550 lbs load capacity under normal use

MODEL #	LENGTH	WIDTH	HEIGHT RANGE
80061	72″	27″	21.5″ – 37.5″
80061-X	72″	34″	21.5″ – 37.5″

Please allow at least 14 days lead time. Freight charges will be billed separately.

012 Headrest/Power Tables

• Padded and length adjustable
• Extends the table’s length

035 Armboard/Power Tables

• Padded, ratchet style, rotating armboard
• Rotates 180º
​• Interchangeable on right or left side

080 Safety Straps

• 2″ x 89.5″ (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 safety staps per set.
• Bariatric straps available: 2″ x 120″ (5 cm x 305 cm) strap is secured with quick hook and loop fasteners

087 Locking Casters

• 3″ heavy duty, rubber wheel, easy-roll casters

Note: The addition of casters adds 6″ to the overall width of the table. (15.24 cm)

098 Safety Rails

• Pair
• 3-height, position
• Plunger height adjustment

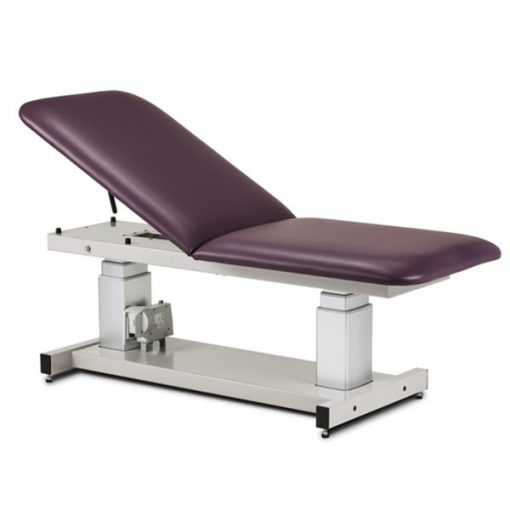

MODEL #: 80062

• Two-piece top with easy-to-adjust, pneumatic backrest
• Trendelenburg/Reverse Trendelenburg plus or minus 15 º
• Easy-to-use hand control
• All-welded base and top frame
• Unobstructed base design
• Dual column lift system adds rigidity
• Paper dispenser included
• 2 Safety straps included
• Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1
• Industry leading 5-year, limited warranty
• Optional side rails  & casters available
• 34″ wide model available
• 550 lbs load capacity under normal use

Please allow at least 14 days lead time. Freight charges will be billed separately.

MODEL #	LENGTH	WIDTH	HEIGHT RANGE
80062 (overall)	72″	27″	21.5″ – 37.5″
Backrest	38″	27″
80062-X (overall)	72″	34″	21.5″ – 37.5″
Backrest	38″

011 Power Backrest

• Smooth power control raises backrest to 80º and lowers to flat

012 Headrest/Power Tables

• Padded and length adjustable
• Extends the table’s length

035 Armboard/Power Tables

• Padded, ratchet style, rotating armboard
• Rotates 180º
​• Interchangeable on right or left side

080 Safety Straps

• 2″ x 89.5″ (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 safety staps per set.
• Bariatric straps available: 2″ x 120″ (5 cm x 305 cm) strap is secured with quick hook and loop fasteners

087 Locking Casters

• 3″ heavy duty, rubber wheel, easy-roll casters

Note: The addition of casters adds 6″ to the overall width of the table. (15.24 cm)

098 Safety Rails

• Pair
• 3-height, position
• Plunger height adjustment

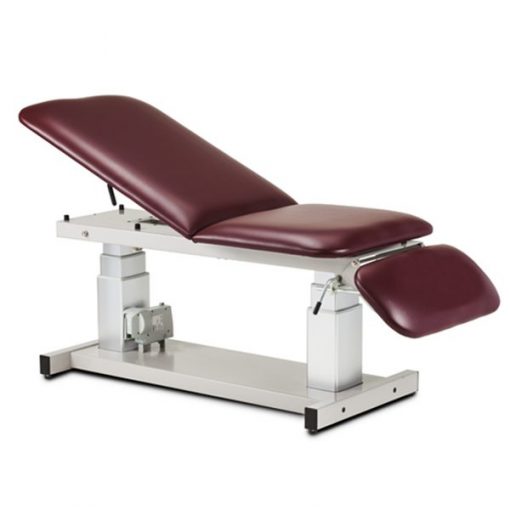

MODEL #: 80063

• Three-piece top with pneumatic adjustable backrest and manual footrest
• Footrest is adjustable from either side and raises up to 30º from flat position
• Trendelenburg/Reverse Trendelenburg plus or minus 15 º
• Easy-to-use hand control
• All-welded base and top frame
• Unobstructed base design
• Dual column lift system adds rigidity
• Paper dispenser included
• 2 Safety straps included
• Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1
• Industry leading 5-year, limited warranty
• Optional side rails  & casters available
• 34″ wide model available
• 550 lbs load capacity under normal use

Please allow at least 14 days lead time. Freight charges will be billed separately.

MODEL #	LENGTH	WIDTH	HEIGHT RANGE
80063 (overall)	76″	27″	21.5″ – 37.5″
Backrest	38″	27″
Footrest	13″	27″
80063-X (overall)	76″	34″	21.5″ – 37.5″
Backrest	38″	34″
Footrest	13″	34″

011 Power Backrest

• Smooth power control raises backrest to 80º and lowers to flat

012 Headrest/Power Tables

• Padded and length adjustable
• Extends the table’s length

035 Armboard/Power Tables

• Padded, ratchet style, rotating armboard
• Rotates 180º
​• Interchangeable on right or left side

080 Safety Straps

• 2″ x 89.5″ (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 safety staps per set.
• Bariatric straps available: 2″ x 120″ (5 cm x 305 cm) strap is secured with quick hook and loop fasteners

087 Locking Casters

• 3″ heavy duty, rubber wheel, easy-roll casters

Note: The addition of casters adds 6″ to the overall width of the table. (15.24 cm)

090 Power Footrest

• Smooth power control lowers footrest to 30º and raises to flat

098 Safety Rails

• Pair
• 3-height, position
• Plunger height adjustment
