CLINTON Imaging Tables
Please allow at least 14 days lead time. Freight charges will be billed separately.
| Model | Description | SKU | Price | Qty. | ||
|---|---|---|---|---|---|---|
| 80071 |  | One piece imaging table with drop wide | CL80071-X | $3,489.66 | ||
| 80072 |  | two piece imaging table with drop wide | CL80072-X | $3,872.30 | ||
| 80073 |  | Three piece imaging table with drop wide | CL80073-X | $4,484.59 | ||
| 80073 |  | Three piece top imaging table with drop | CL80073 | $4,226.68 | ||
| 80072 | | Two piece top imaging table with drop | CL80072 | $3,614.33 | ||
| 80071 | | One piece top imaging table with drop | CL80071 | $3,231.73 |
PLEASE CALL OR EMAIL WITH DESIRED PRODUCT INFORMATION!
Imaging Tables

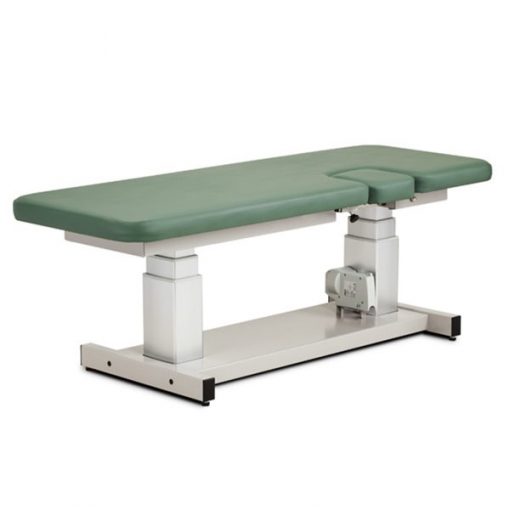

MODEL #: 80071
• One piece flat top with drop window
• Trendelenburg/Reverse Trendelenburg plus or minus 15 º
• Easy-to-use hand control
• All-welded base and top frame
• Unobstructed base design
• Dual column lift system adds rigidity
• Paper dispenser included
• 2 Safety straps included
• Power supplies and motors meet UL 60601-1 and
CAN/CSA C22.2 601.1
• Industry leading 5-year, limited warranty
• 550 lbs load capacity under normal use
Please allow at least 14 days lead time. Freight charges will be billed separately.
| MODEL # | LENGTH | WIDTH | HEIGHT RANGE |
|---|---|---|---|
| 80071 | 72″ | 27″ | 21.5″ – 37.5″ |
| window | 10″ | 10″ | |
| 80071-X | 72″ | 34″ | 21.5″ – 37.5″ |
| window | 10″ | 10″ | |
| 80071-X | 182.88 cm | 86.36 cm | 54.61 cm – 95.25 cm |
| window | 25.4 cm | 25.4 cm |
• Padded and length adjustable
• Extends the table’s length
• Padded, ratchet style, rotating armboard
• Rotates 180º
• Interchangeable on right or left side
• 2″ x 89.5″ (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 safety staps per set.
• Bariatric straps available: 2″ x 120″ (5 cm x 305 cm) strap is secured with quick hook and loop fasteners
• 3″ heavy duty, rubber wheel, easy-roll casters
Note: The addition of casters adds 6″ to the overall width of the table. (15.24 cm)
• Pair
• 3-height, position
• Plunger height adjustment

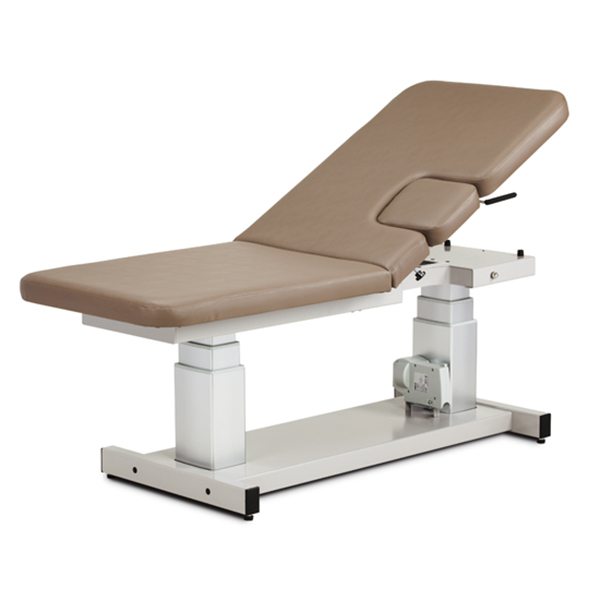

MODEL #: 80072
• Two-piece top with pneumatic adjustable backrest and window drop
• Trendelenburg/Reverse Trendelenburg plus or minus 15 º
• Easy-to-use hand control
• All-welded base and top frame
• Unobstructed base design
• Dual column lift system adds rigidity
• Paper dispenser included
• 2 Safety straps included
• Power supplies and motors meet UL 60601-1 and
CAN/CSA C22.2 601.1
• Industry leading 5-year, limited warranty
• 34″ wide model available
• 550 lbs load capacity under normal use
Please allow at least 14 days lead time. Freight charges will be billed separately.
| MODEL # | LENGTH | WIDTH | HEIGHT RANGE |
|---|---|---|---|
| 80072 (overall) | 72″ | 27″ | 27.5″ – 37.5″ |
| Backrest | 38″ | 27″ | |
| Window | 10″ | 10″ | |
| 80072-X (overall) | 72″ | 34″ | 27.5″ – 37.5″ |
| Backrest | 38″ | 34″ | |
| Window | 10″ | 10″ |
• Smooth power control raises backrest to 80º and lowers to flat
• Padded and length adjustable
• Extends the table’s length
• Padded, ratchet style, rotating armboard
• Rotates 180º
• Interchangeable on right or left side
• 2″ x 89.5″ (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 safety staps per set.
• Bariatric straps available: 2″ x 120″ (5 cm x 305 cm) strap is secured with quick hook and loop fasteners
• 3″ heavy duty, rubber wheel, easy-roll casters
Note: The addition of casters adds 6″ to the overall width of the table. (15.24 cm)
• Pair
• 3-height, position
• Plunger height adjustment
Imaging Tables

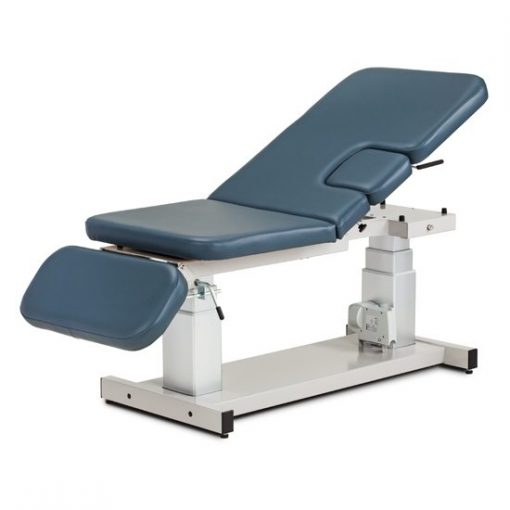

MODEL #: 80073
• Three-piece top with pneumatic adjustable backrest, manual footrest and window drop
• Footrest is adjustable from either side and raises up to 30º from flat position
• Optional side rails & casters (see opt
• Trendelenburg/Reverse Trendelenburg plus or minus 15 º
• Easy-to-use hand control
• All-welded base and top frame
• Unobstructed base design
• Dual column lift system adds rigidity
• Paper dispenser included
• 2 Safety straps included
• Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1
• Industry leading 5-year, limited warranty
• 34″ wide model available
• 550 lbs load capacity under normal use
Please allow at least 14 days lead time. Freight charges will be billed separately.
| MODEL # | LENGTH | WIDTH | HEIGHT RANGE |
|---|---|---|---|
| 80073 (overall) | 76″ | 27″ | 21.5″ – 37.5″ |
| Backrest | 38″ | 27″ | |
| Footrest | 12″ | 27″ | |
| Window | 10″ | 10″ | |
| 80073-X (overall) | 76″ | 34″ | 21.5″ – 37.5″ |
| Backrest | 38″ | 34″ | |
| Footrest | 12″ | 27″ | |
| Window | 10″ | 10″ |
• Smooth power control raises backrest to 80º and lowers to flat
• Padded and length adjustable
• Extends the table’s length
• Padded, ratchet style, rotating armboard
• Rotates 180º
• Interchangeable on right or left side
• 2″ x 89.5″ (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 safety staps per set.
• Bariatric straps available: 2″ x 120″ (5 cm x 305 cm) strap is secured with quick hook and loop fasteners
• 3″ heavy duty, rubber wheel, easy-roll casters
Note: The addition of casters adds 6″ to the overall width of the table. (15.24 cm)
• Smooth power control lowers footrest to 30º and raises to flat
• Pair
• 3-height, position
• Plunger height adjustment
CLINTON Imaging Tables
